Kev piav qhia

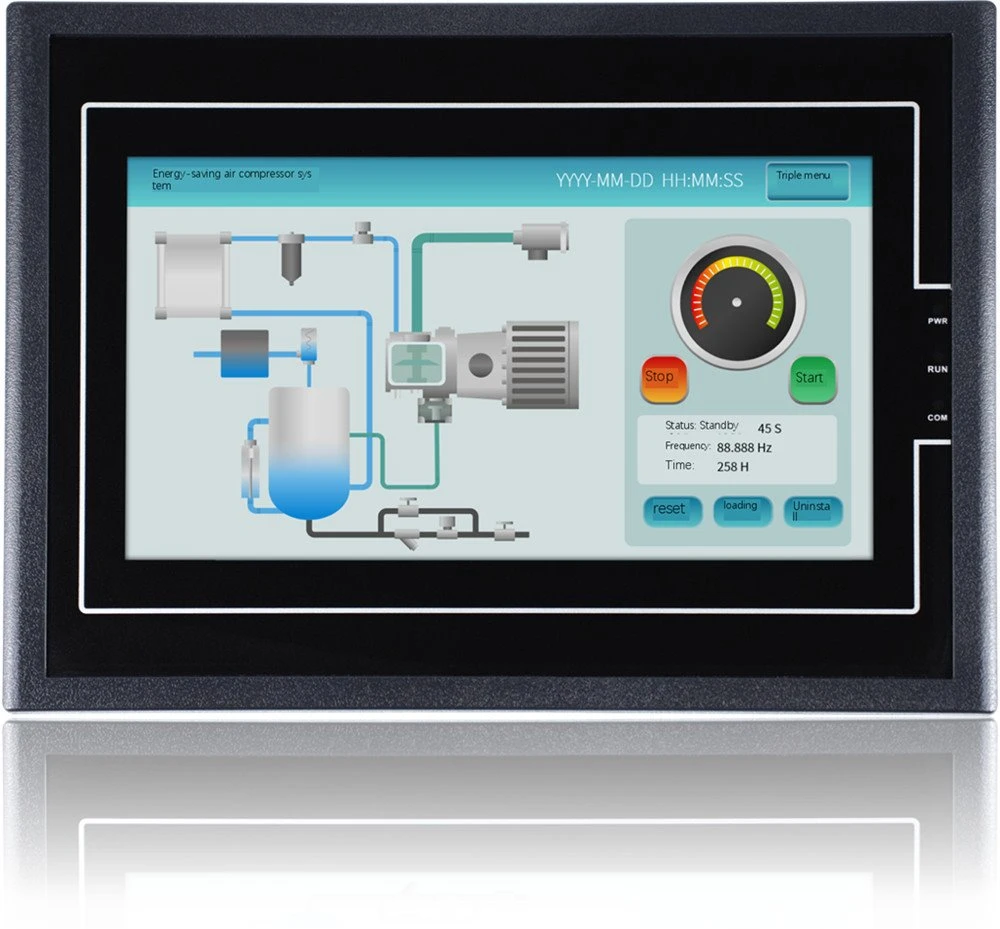

Lub tshuab cua compressor yog lub cev tseem ceeb ntawm cov cuab yeej cua tshuab thiab lub zog tsim cov cuab yeej ntawm compressed cua, dav siv nyob rau hauv ntau yam kev lag luam thiab kev lag luam kev siv, thiab peb 7 Nti Cua Compressor HMI yog tsim los tswj ntau yam khoom zoo dua. Nws yog txawm peem rau nrog ib tug rhiab kov screen thiab ib tug siab heev processor, uas muaj peev xwm ua tau hauj lwm zoo yam tsis muaj kev tsis ua hauj lwm, thiab tswj lub ceev ntawm lub compressor, li qub, thiab lwm yam Cheebtsam, coj koj ib tug ntse kev ua hauj lwm kev. Ntxiv mus, nws muaj peev xwm ua tau zoo thiab cov kev sib txuas siab heev, yog li nws yog qhov yooj yim saib xyuas thiab tswj cov txheej txheem.

Nta

Qhov no 7 Inch Air Compressor HMI muaj peev xwm tsim cov cuab yeej ntse, uas yuav pab txhim kho kev nyab xeeb ntawm cov cuab yeej thiab cov qauv zoo uas cov cuab yeej yuav ua raws, thiab txhim kho cov txheej txheem kev lag luam los ntawm cov ntaub ntawv digital. Nyob rau tib lub sijhawm, nws tuaj yeem pab koj nkag siab txog kev ua haujlwm ntawm cov cuab yeej siv thiab tswj lub tswb thaum muaj kev txawv txav los ntawm cov ntaub ntawv tseem ceeb uas tshwm sim hauv daim duab lossis digital dashboard. Tsis tas li ntawd, nws cov evolution tau dhau los ua ntau dua, thiab nws qhov kev sib txuas niaj hnub no tau tsim ntau lub sijhawm rau kev sib cuam tshuam ntawm cov cuab yeej thiab kev tshuaj xyuas.

Yam khoom qauv

Qauv	Kev piav qhia
AMZ070W01RPG	7-inch cua compressor hmi, serial chaw nres nkoj 1: rs485128mbyte SPI NAND flash, tiv thaiv kov

Khoom Loj

Zaub loj	Khoom qauv	Zuag qhia tag nrho	Qhov pom qhov pom ntawm qhov screen	Qhov qhib qhov loj	Pom zoo qhib qhov loj	Qhov siab tshaj plaws thickness
7 ntiv	AMZ070W01RPG	203 * 149 hli	154.1 * 85.9 hli	190 * 136 hli	192 * 138 hli	34mm ib

Khoom Parameters

Khoom Specifications
Hardware Performance	Qauv	AMZ070W01RPG
	Zaub	7" TFT LCD
	Kev daws teeb meem (PX)	800X480
	Xim	260,000 ua
	Brightness	400 cd / m2
	Backlight	LED
	LED lub neej	20000 teev
	kov npo	4-wire industrial resistance touch screen (nto hardness 4H), txhawb capacitive touch screen
	CPU	32-ntsis 600MHz lub ntsiab zaus ARM9 built-in 32MB DDR nco
	Cia	128Mbyte SPI Nand Flash
	RTC	Real-time moos built-in
	4G	Tsis txhawb
	Fais fab-down cov ntaub ntawv	Txhawb nqa
	USB chaw nres nkoj	1 USB2.0 OTG chaw nres nkoj
	Program download hom	USB, U disk, SD daim npav download
	USB flash drive	Txhawb nqa
	Kev sib txuas lus chaw nres nkoj	1: RS485 serial chaw nres nkoj
Hluav taws xob Specifications	Rated zog	Qhov siab tshaj 3.5W
	Rated voltage	DC 10-30V
	Kev tiv thaiv lub zog	Nrog ntxiv /-2KV xob laim tiv thaiv muaj peev xwm.
	Tso cai poob zog	<5ms
	CE & ROHS ntawv pov thawj	Ua tau raws li cov qauv ntawm en61000-6-2: 2005 thiab en61000-6-4: 2007; xob laim surge plus /-2KV, pab pawg mem tes ntxiv /-4KV; Electrostatic tawm ntxiv /-8KV; Electrostatic tawm hauv huab cua ntxiv /-15KV.
Environmental Specification	Ua haujlwm kub	-10 degree ~ 50 degree
	Cia kub	-20 degree ~ 70 degree
	Ambient humidity	10 ~ 90% RH (tsis-condensing)
	Av qeeg kuj	10-25Hz (X, y, z cov lus qhia, 2g/30min)
	Txias hom	Ntuj cua txias
Lwm yam Parameters	Cov qib kev tiv thaiv	Lub vaj huam sib luag pem hauv ntej ua tau raws li IP65 (nrog rau lub vaj huam sib luag tiaj tus thiab lub txee nruab), thiab lub plhaub tom qab ntawm lub fuselage ua raws li IP20.
	Siv tau zoo thaj tsam ntawm touchscreen	154.1mm X 85.9 hli
	Qhib qhov loj	196 x 142 mm
	daim ntawv dimension	203 x 149 mm
	Net nyhav ntawm tag nrho lub tshuab	400g
	Mounting ntsia hlau qhov nrug	Dav: 177mm, qhov siab: 122mm

Hardware Taw Qhia

Terminal Pin txhais
